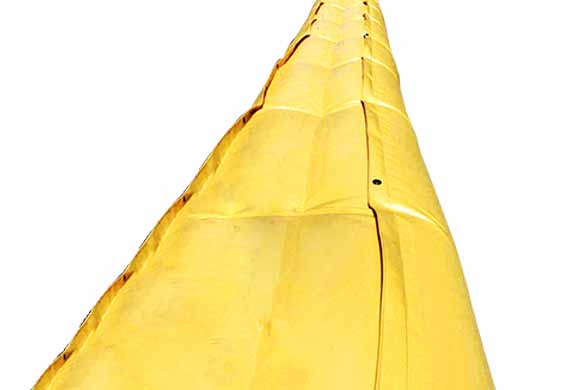

Oval Ventilation Duct

  • • Oval Duct or Twin Duct available in lay flat and semi-rigid ventilation duct, suitable for both positive pressure airflow.
  • • PVC coated polyester fabric featuring low friction loss and easy installation. MSHA approved, and compliant with Australian Mine Safety TRG3608 testing standards.
  • • High-strength welded construction ensures exceptional airflow performance.
  • • High tensile strength and tear resistance, certified according to DIN 53354 and DIN 53363 testing standards.
  • • High tensile strength and tear strength approved by DIN53354 and DIN53363 test methods.
  • • Diameter: 600 mm to 3,200 mm (custom diameters available).
  • • Standard Length: 1 m to 50 m (custom lengths available).
  • • End connection options include zipper, Velcro, steel ring, or eyelets.
  • • Flame retardant standards NFPA 701 and DIN 4102 B2 approved; B1 class is also available.
  • • Optional: anti-static value less than 300 MΩ.

Standard Technical Specifications

PVC Fabric 500g FR 550g FR 600g FR 650g FR 700g FR
Total Weight (gsm) 500±20 550±20 600±20 650±20 700±20
Color Yellow / Black / Green / Customized
Tensile Strength
(DIN53354)
Warp (N/5cm) 1800 2000 2600 2800 3000
Weft (N/5cm) 1800 2200 3000 3400 3600
Tearing Strength
(DIN53363)
Warp (N) 300 360 450 800 860
Weft (N) 320 400 750 800 860
Working Temperature -30℃ ~ +80℃
Flame Retardant NFPA701, DIN4102-B2, MSHA, TRG3608
Inside Diameter 600mm – 3200mm
Section Length 1m – 300m

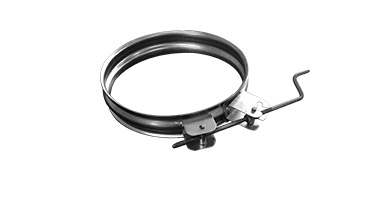

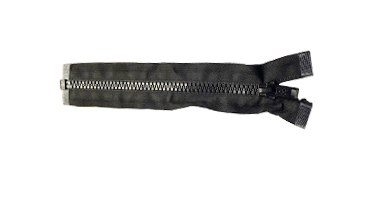

Couplings Zipper / Steel Ring / Velcro / Eyelets
Anti-static ≤300MΩ (if required)

India Hydropower Project
Nepal Hydropower Project 01
Oval Flat Duct 03

Application

  • • Mining projects
  • • Metro projects
  • • Highway projects
  • • Railway projects
  • • Hydropower station projects
  • • Water diversion projects
  • • Underground oil storage projects
  • • Other underground projects requiring ventilation.

Other Parts of An Underground Ventilation Ducting System

Adapter Duct 01

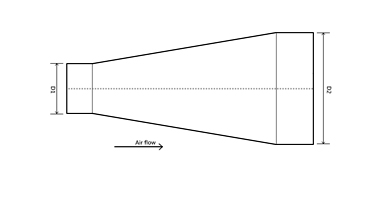

Adapter Duct

Duct adapter changes the ducting system from a bigger size to a smaller one and vice versa. It minimizes airflow leakages and material costs as the connection between the extractor fan and the duct.

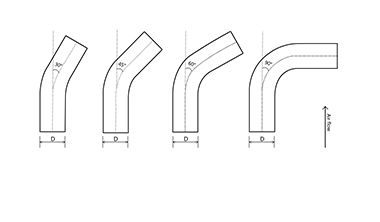

Bend Duct 1

Bend Duct

Available in angles such as 30, 45, 65 and 90 degrees, duct bends flexibly adjust the sharp turns of airflow direction.

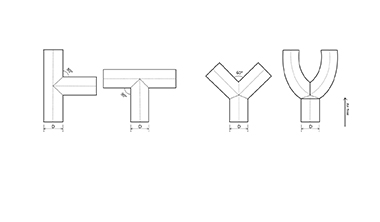

Tee WYE Duct 1

Tee and WYE Duct

Degree refers to the angle between the straight duct flow and the branch. Branches of 30, 45, 60, and 90-degree angles, so do the Tee and WYE ducts.

Customize YOUR Ventilation Duct

Every parts of the ventilation ducting system matter. Sulong ventilation duct with multiple custom options fulfills your requirements in budget and quality.

s07 1 icon

Duct Size

s07 2 icon

Fabric Performance

s07 3 icon

End Connection

s07 4 icon

Suspension Seam

s07 6 icon

Logo

Make Your High-Flow Ventilation Duct With Our Experts' Help!
