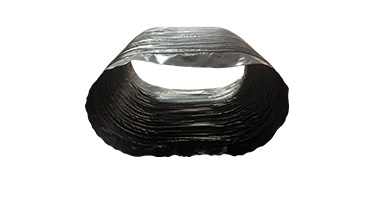

  • oval semi rigid duct. 01

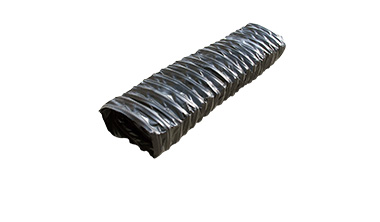

  • rectangle semi rigid duct 02
  • Semi Rigid Connector
  • Semi rigid ventilation duct
  • Semi rigid duct 06
  • Semi rigid duct 03
  • Semi rigid duct 04
  • Semi rigid duct 01
  • oval semi rigid duct. 01
  • rectangle semi rigid duct 02
  • Semi Rigid Connector

Semi Rigid Ventilation Duct

  • • PVC coated polyester fabric featuring low friction loss and easy installation. MSHA approved, and compliant with Australian Mine Safety TRG3608 testing standards.
  • • Reinforced with spring steel wire (φ5mm–φ10mm), featuring wear protection and high-pressure resistance.
  • • Diameter: 200 mm to 2,500 mm (custom diameters available).
  • • Standard Length: 1 m to 20 m (custom lengths available).
  • • End connection options include zipper, Velcro, steel ring, or eyelets.
  • • Flame retardant standards NFPA 701 and DIN 4102 B2 approved; B1 class is also available.
  • • Optional: anti-static value less than 300 MΩ.

Standard Technical Specifications

PVC Fabric 500g FR 550g FR 600g FR 650g FR 700g FR
Total Weight (gsm) 500±20 550±20 600±20 650±20 700±20
Color Yellow / Black / Green / Customized
Tensile Strength
(DIN53354)
Warp (N/5cm) 1800 2000 2600 2800 3000
Weft (N/5cm) 1800 2200 3000 3400 3600
Tearing Strength
(DIN53363)
Warp (N) 300 360 450 800 860
Weft (N) 320 400 750 800 860
Working Temperature -30℃ ~ +80℃
Flame Retardant NFPA701, DIN4102-B2, MSHA, TRG3608
Inside Diameter 200mm – 2500mm
Section Length 1m – 20m
Couplings Zipper / Steel Ring / Velcro / Eyelets
Anti-static ≤300MΩ (if required)

Haolebaoji Jian Raiway Projects
Flexible Ventilation Duct
tunnel project flexible duct

Application

  • • Mining projects
  • • Metro projects
  • • Highway projects
  • • Railway projects
  • • Hydropower station projects
  • • Water diversion projects
  • • Underground oil storage projects
  • • Machine equipment connector
  • • Other underground projects requiring ventilation.

fitting 7

Steel Ring End

fitting 12

Zipper End

fitting 11

Velcro End

fitting 4

Steel Clamp

fitting 5

PVC Rubber Clamp

fitting 6

Carabiner Snap Hook

Customize YOUR Ventilation Duct

Every parts of the ventilation ducting system matter. Sulong ventilation duct with multiple custom options fulfills your requirements in budget and quality.

s07 1 icon

Duct Size

s07 2 icon

Fabric Performance

s07 3 icon

End Connection

s07 5 icon

Spring Steel Wire Pitch

s07 6 icon

Logo

Make Your High-Flow Ventilation Duct With Our Experts' Help!
